| Quantity: | |
|---|---|

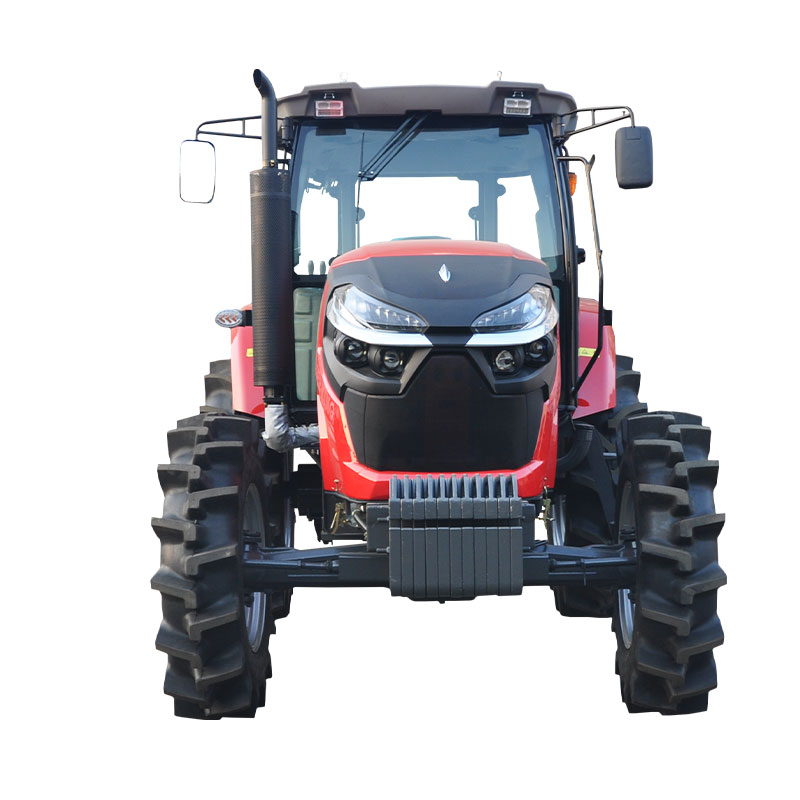

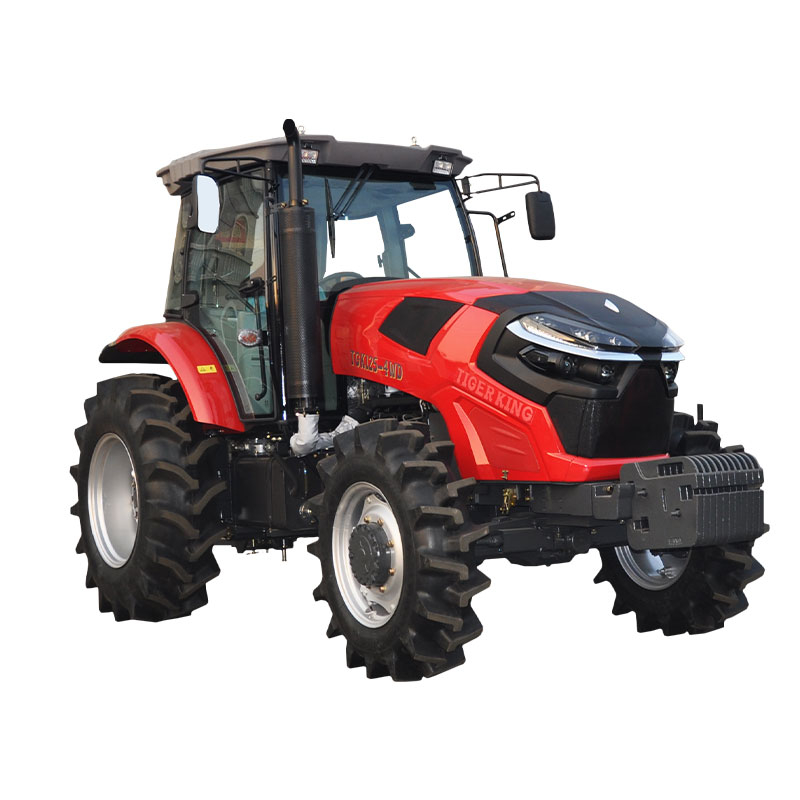

| Engine | / | YB1404 | Lifting power | kN | 24 |
| Model | / | HF Power 6R2 | Three-point suspension type | / | Category 1 or 2 |
| Horsepower | HP | 140 | Hydraulic output flow | L/min | 63 |
| Displacement | L | 6.5 | Number of multi-way valves | / | 2or 3 |
| Torque | NM | ≥600 | Length*Width* Height | mm | 5060x2285x3100 |
| Gearshift | / | 16+8 | Wheelbase | mm | 2070 |
| Technical route | / | Synchronizer shift | Ground clearance | mm | 405 |
| Speed range | km/h | 1.97-32.3 | Turning radius | m | 3.3+0.2 |
| PTO speed | r/min | 540/1000 | Weight | kg | 5500 5600 |
| Tire size | / | 14.9-26/18.4-38 | |||
